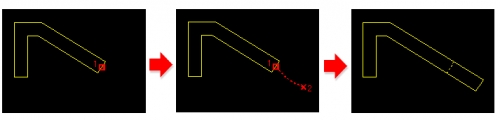

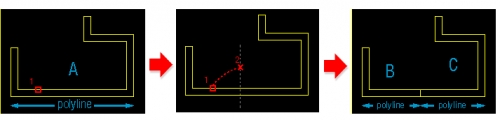

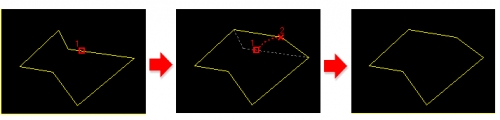

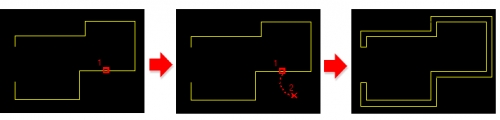

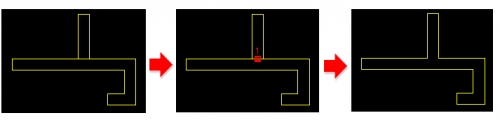

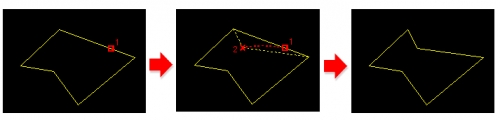

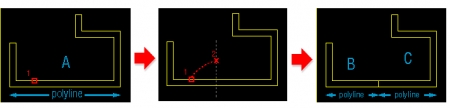

Expand a polyline to a closed polyline (draw a wall) 1- click on the polyline 2- click on the side of the offset (or press the space bar if axed) Split one closed polyline into 2 closed polylines 1- click on the segment where you want the section to be made 2- click any point square to the section (or select 2 points for skew sections) 3- optional : click a 2nd point to make another section (e.g. to make a hole for a door) Merge 2 closed polylines 1- Click on the common segment of both polylines Add a vertex 1- Click on the segment on which you want to add a vertex 2- Move the new vertex to the final position Delete a vertex 1- Click a segment close to the vertex to be deleted 2- The closest vertex will be removed Move a segment 1- Click on the segment to move 2- The segement is forced to move sideways. Click a point to move the segment or enter a numerical value 1- Click on a segment close to the vertex to be moved 2- Click the new position of the vertex
To receive a non-exe version of PolyTools for AutoCAD, please contact us at support@swisscad.com Current version is 2.009 To update PolyTools, download and reinstall. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
