PolyTools 2.0
Polyline edit tools for AutoCAD
NEW !


Forget about PEDIT, use PolyTools for AutoCad
PolyTools is a set of intuitive tools to quickly create and modify polylines in AutoCad.
And PolyTools does much more than adding or removing a vertex in one click.
It can quickly transform, split or merge polylines.

Tools for architects and building engineers
PolyTools offers some basic polyline functions designed for square drawings in 2D to best suit the needs of the construction design.

How fast is PolyTools compared to Autocad's edit functions ?
Drawing and editing polylines are the most basic functions for many drafting works.
Polytools has been created to perfom the simplest editing functions with
as few clicks as possible.

  polyline function Autocad, pedit, etc...

PolyTools


add a vertex

at least 6 clicks

2 clicks
  delete a vertex

not supported

 1 click
  move a vertex 6 clicks 2 clicks
  move a segment at least 6 clicks 2 clicks
  split a closed polyline at least 18 clicks 2 clicks
  merge 2 polylines at least 10 clicks 1 click
  draw a "wall" 16 clicks 3 clicks

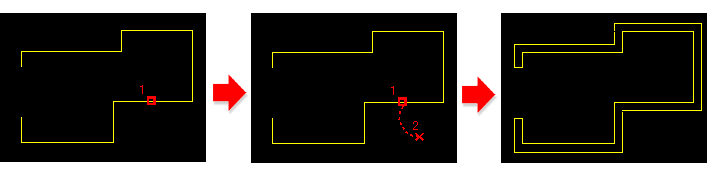

Expand a polyline to a closed polyline (wall)
Command : PEXPAND


1- click on the polyline
2- click on the side of the offset (or press the space bar if axed)


Split one closed polyline into 2 closed polylines
Command : PSPLIT


1- click on the segment where you want the section to be made
2- click any point square to the section (or select 2 points for skew sections)
3- optional : click a 2nd point to make another section (e.g. to make a hole for a door)

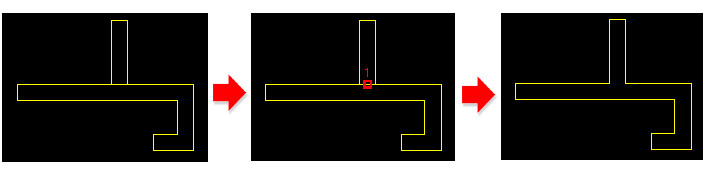

Merge 2 closed polylines
Command : PMERGE


1- Click on the common segment of both polylines

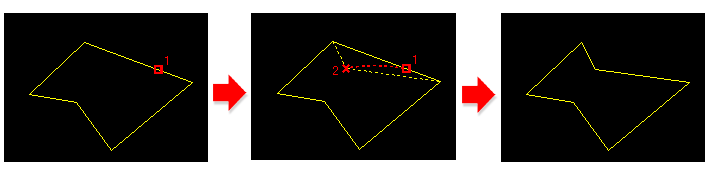

Add a vertex
Command : PADD


1- Click on the segment on which you want to add a vertex
2- Move the new vertex to the final position

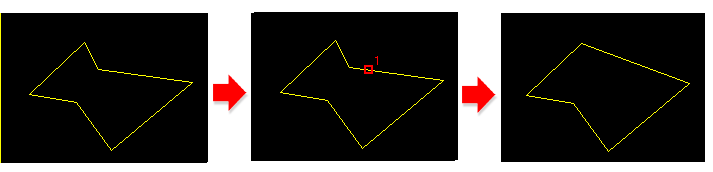

Delete a vertex
Command : PREMOVE


1- Click a segment close to the vertex to be deleted
2- The closest vertex will be removed

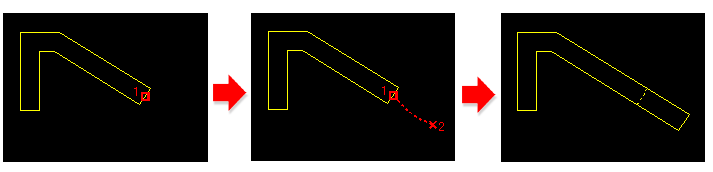

Move a segment
Command : PSTRETCH


1- Click on the segment to move
2- The segement is forced to move sideways. Click a point to move the segment or enter a numerical value

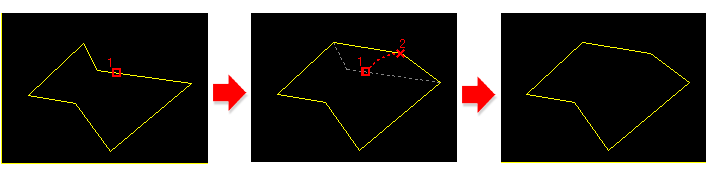

Move a vertex
Command : PMOVE


1- Click on a segment close to the vertex to be moved
2- Click the new position of the vertex


Free 30-day Trial


To receive a non-exe version of PolyTools for AutoCad, please contact us at support@cad-organizer.com
Current version is 2.009
To update PolyTools, download and reinstall.
